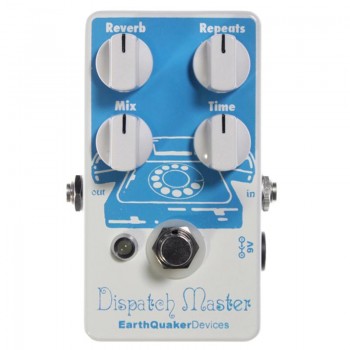

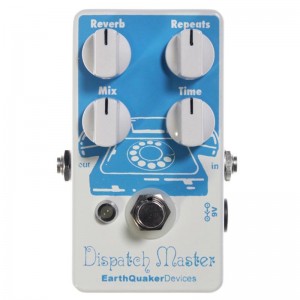

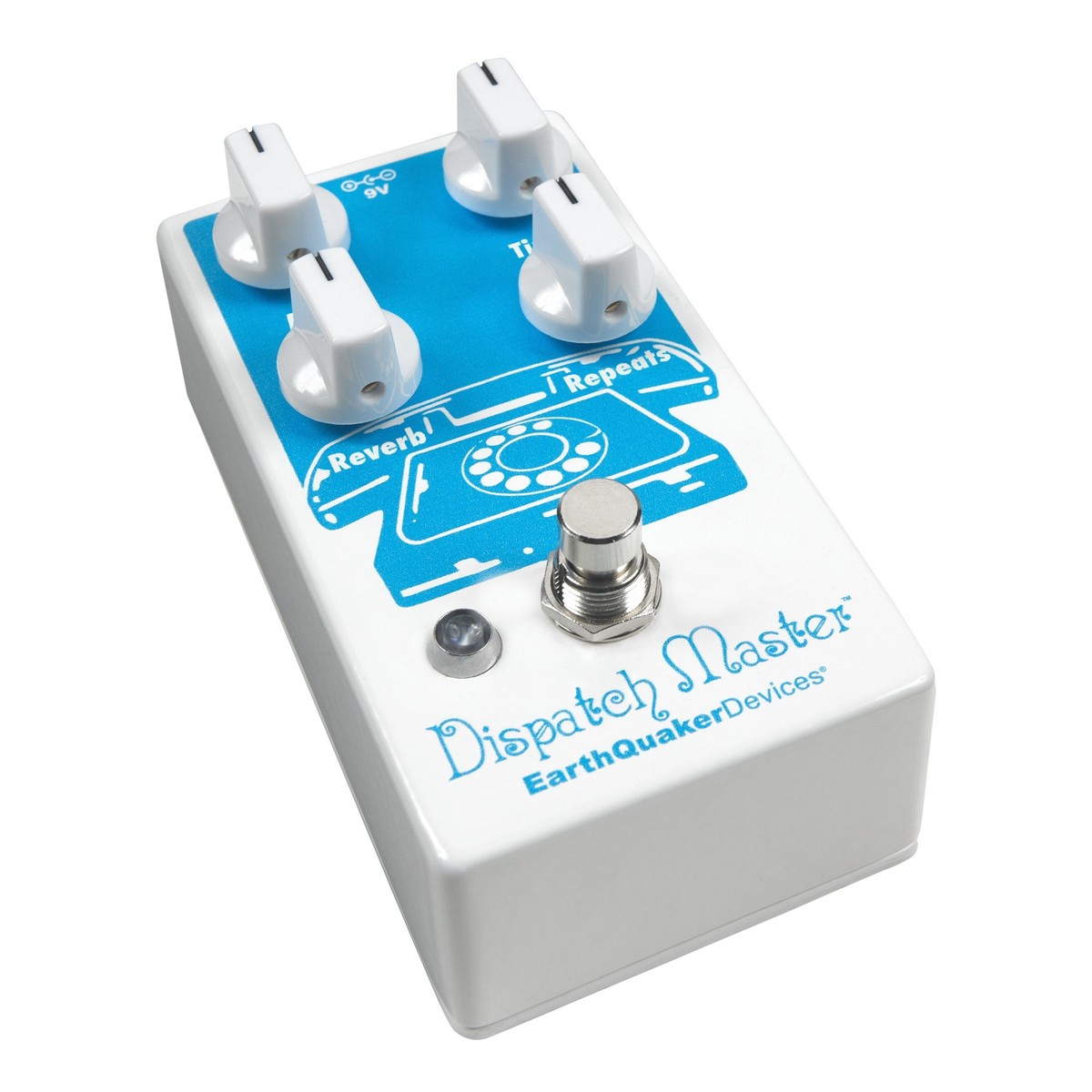

EarthQuaker Devices Dispatch Master Delay and Reverb

Loved for both its small size and lush sound, the Dispatch Master is capable of producing up to 1.5 seconds of delay time with near-infinite repeats and a cavernous reverb.  The delay signal is clear and strong with no after effects or signal degradation and the repeats decay into a nice ambient swell with no oscillation.  The reverb is MASSIVE and is sure to please those who love EarthQuaker’s Ghost Echo but want more modern depth and less artefacts.  Both effects can be run separately or in unison.  When using the reverb with no delay, the repeats control can be used to thicken up the reverb and give it more dimension.  The Dispatch Master features a digital delay and reverb line with an all analogue direct signal path and true bypass switching.  Hand made one at a time in landlocked Akron, Ohio.

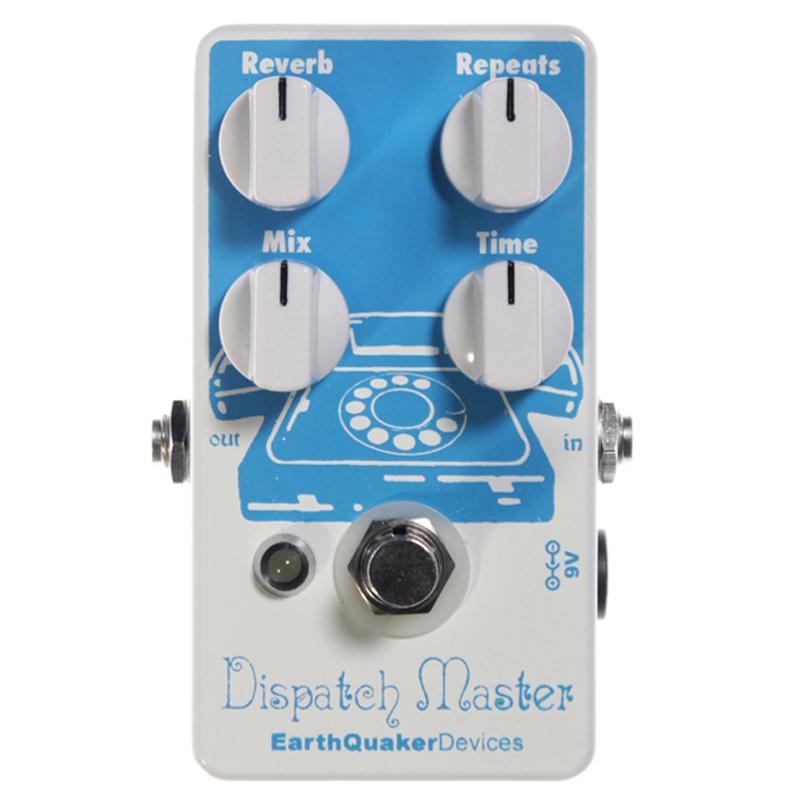

Controls

• Time:  Sets the delay time, from 0ms to 1.5 seconds.

• Repeats:  Controls the regeneration of the delayed signal.  Also acts as an enhancer for the reverb.  In reverb mode this will control the thickness, decay, depth and overall nature of the reverb.

• Reverb:  Clockwise for more reverb, counter clockwise for less.

• Mix:  Adjusts the overall level of the effected signal.

To use as a reverb only, turn the time control all the way down and adjust the reverb and mix controls to taste.  In this mode, the repeats control can be used to enhance the thickness, decay, depth and overall nature of the reverb.  With the reverb control at its maximum setting, the repeats control will gradually overload the effect at higher settings.

To use as a delay only, turn the reverb control all the way down and adjust the time, repeats and mix controls to taste.
To use both effects in unison, adjust all controls to taste.

Measures

4.37″ X 2.37″ X 1.75″ with knobs

Power

This pedal takes a standard 9-volt DC power supply with a 2.1mm negative centre barrel.  Pedals will make extra noise if there is ripple or unclean power.  Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.  Do not run at higher voltages!  Current draw is 60 mA.
