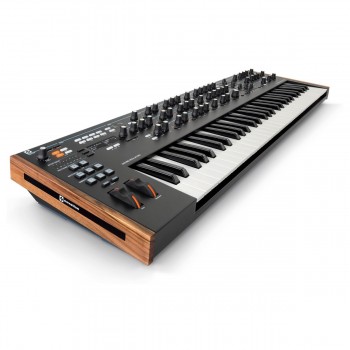

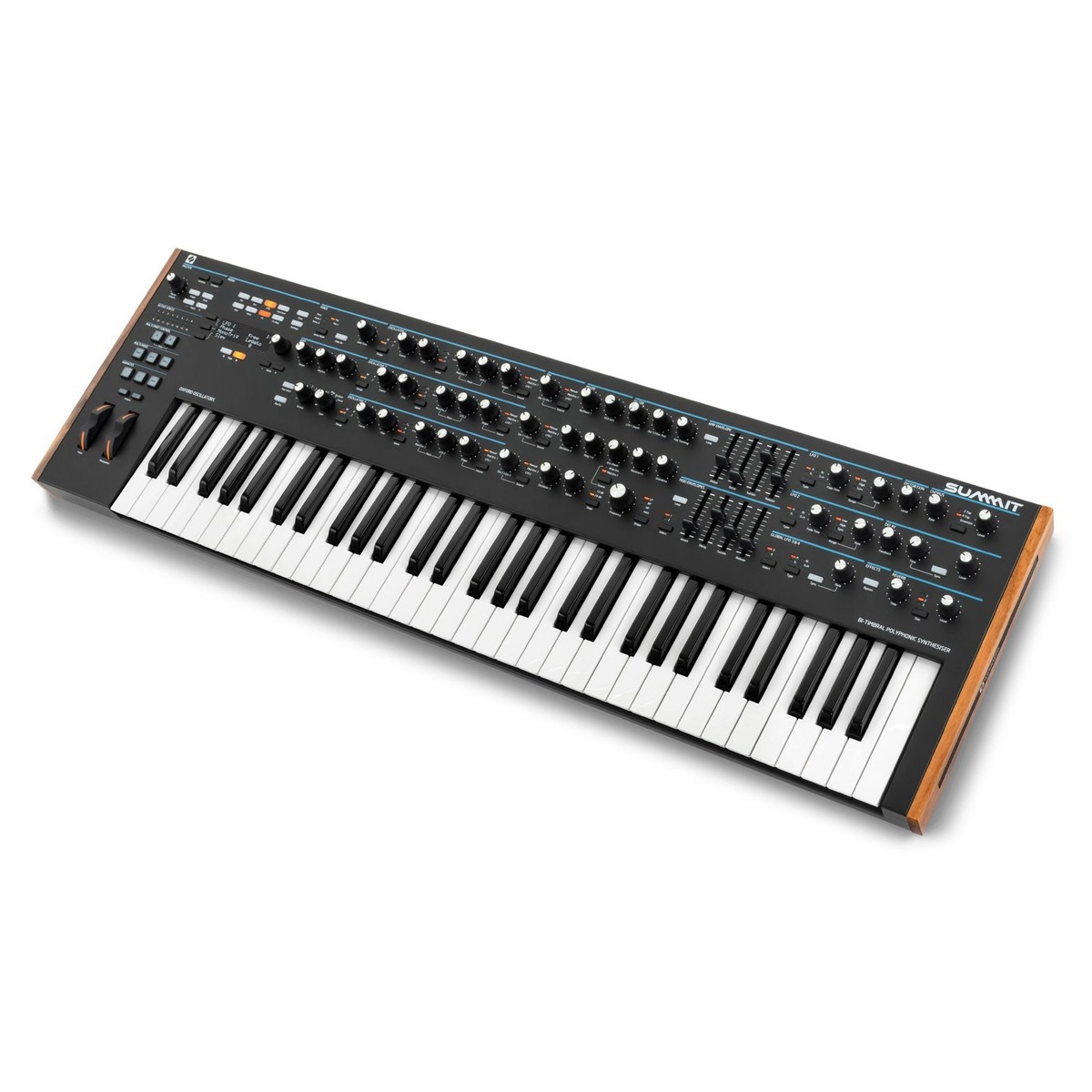

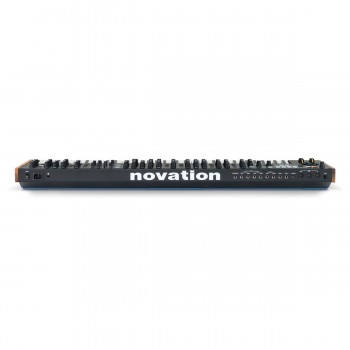

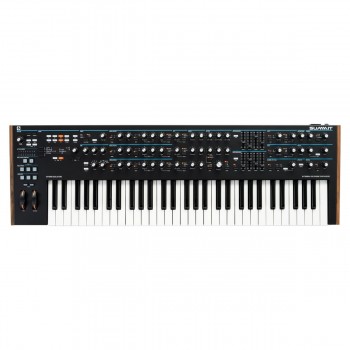

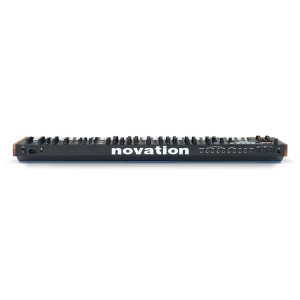

Novation Summit Synthesizer

Built on the innovative foundations of Novation’s critically acclaimed Peak, Summit is a three-oscillator-per-voice, 16-voice keyboard synth aimed at the professional or semi-professional musician seeking an inspiring, empowering instrument for use both live and in the studio. In fact, Summit effectively puts the power of two Peaks at your fingertips, enabling two completely independent patches to be split or layered across the keyboard, or switched between on the fly. It also expands on Peak’s layout, with many ‘hidden’ controls and functions made accessible on the front panel – FM routing, LFOs 3 and 4, all arpeggiator parameters and more – plus the addition of pitch and mod wheels. Summit also features numerous new filter options, and an audio input for processing external sources with its reverb, chorus and delay effects.

At the heart of Summit are three digital New Oxford Oscillators per voice, hosted on the FPGA (Field Programmable Gate Array) chip. As well as generating authentic analogue-style waveforms at incredibly high resolution, this also facilitates FM and wavetable synthesis for the design of rich, complex and highly textural raw tones. Each voice feeds into a true stereo signal path comprising dual analogue filters, three stages of analogue distortion and analogue VCAs; while a wealth of modulation assignment options and three colourful effects bring movement, life and polish to your patches.

Peak powered up

• The acclaimed Peak architecture taken to the next level, with 16 voices, expanded front panel controls, new filter options, a five-octave keyboard and more

Two sounds at once

• Multitimbral engine for splitting, stacking and switching between two simultaneous patches

Digital where it counts

• Digital FPGA-generated New Oxford Oscillators for analogue-style, wavetable and FM synthesis

Analogue where it matters

• Dual analogue filters, analogue VCAs and three stages of analogue distortion per voice

Per-part effects and arpeggiation

• Process each part or an external audio signal with reverb, chorus and delay effects, and create riffs and melodic lines with a variety of arp modes, adjustable gate time and preset patterns

Enjoy three years of warranty

• Wherever you happen to be in the world, you can rely on a three-year warranty if any Novation hardware needs repairing or replacing due to a manufacturing fault. Click here for more information.

Features

• 16-voice polyphonic synth featuring digital FPGA-generated New Oxford Oscillators for subtractive, FM and wavetable synthesis

• True stereo analogue signal path comprising per-part dual analogue filters (derived from Bass Station II), analogue VCAs and three stages of analogue distortion

• 2-part multitimbral engine enables the merging and combining of two simultaneous patches

• Brings many of Peak’s hidden parameters to the front panel for much easier access, most notably the FM controls

• 5-octave, semi-weighted, premium-quality keyboard with velocity sensitivity and polyphonic aftertouch

• 16 freely assignable modulation slots allow for the creation of spectacular and unique sounds

• Onboard reverb, chorus and delay effects are controlled directly from the front panel, and available as modulation targets

• Arpeggiator with key latching, adjustable gate time, and a variety of modes including Chord and Random

• Stereo inputs can be used to route an external source to Summit’s FX section

• CV input for hooking up Eurorack or other CV sources for modulation and sequencing

• Internal PSU for convenient powering without a wall wart

Included Software

• Ableton Live Lite music making software

What's in the box?

•  Novation Summit Synthesiser

• 1 x USB cable

• 1 x Printed Getting Started Guide

• 1 x Power lead
