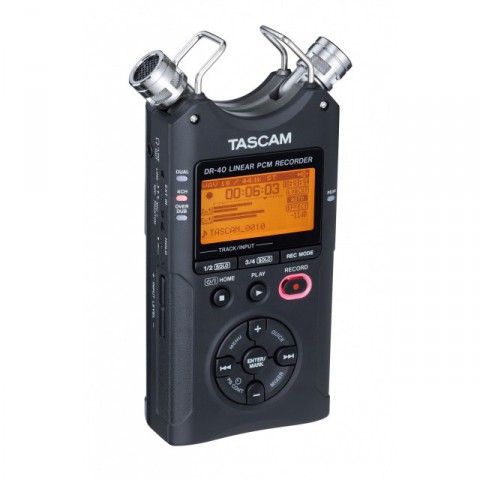

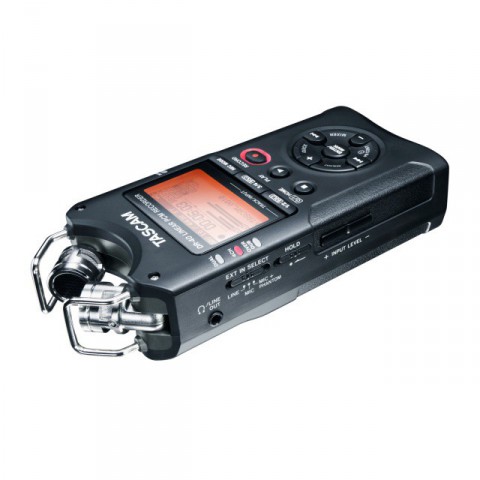

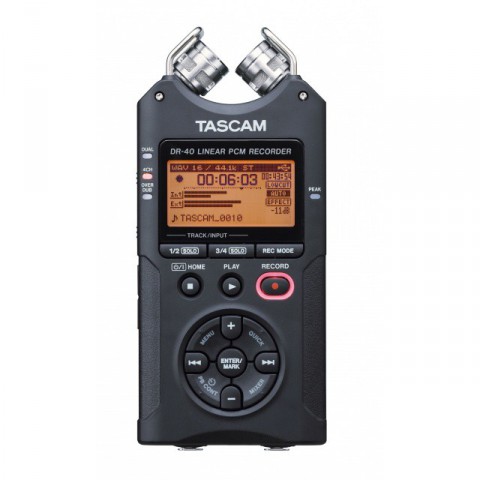

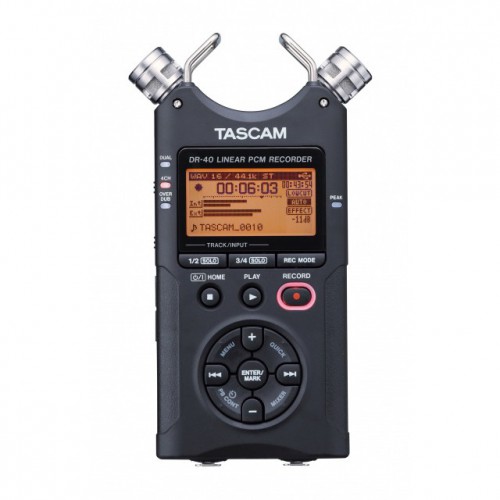

The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4" line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.

Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM’s simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.
"DR-05", "DR-07MK2" and our brand new "DR-40" Linear PCM Recorders are part of TASCAM's handheld recorders. Select a model based on your functional needs.



Features

• Handheld 4-track Portable Recorder
• Built-in condenser microphones, adjustable to XY or AB position
• XLR / 1/4” mic/line input with phantom power
• Record the built-in microphones with the XLR mic or line input for a four-track recording
• Dual recording mode captures a safety track at a lower level to avoid distortion
• Overdub mode allows recording along with a previous take
• Peak reduction automatically sets the ideal recording level
• 15-hour battery life from three AA batteries
• Up to 96kHz/24-bit WAV/BWF or MP3 recording resolution
• 2-second pre-recording buffer
• Variable speed playback from 50-150% speed without changing the pitch
• Adjustable limiter and low cut filter (40 / 80 / 120 Hz)
• Built-in speaker and chromatic tuner
• 1/8” headphone/line output
• Playback EQ and level align
• Stereo Reverb effect
• Tripod mounting hole
• SD/SDHC card slot supports up to 32GB media (2GB card included)
• Locking Neutrik Combi jacks
• USB 2.0 jack and cable for transferring recordings to computer
• Powered by three AA batteries, AC adapter (optional PS-P515U), external battery pack (optional BP-6AA), or USB bus power



Specs

Recording Media
SD card（64MB～2GB）, SDHC card（4GB～32GB）
Recording and Playback Format

WAV / BWF
44.1kHz/48kHz/96kHz, 16/24 bit (Stereo or Mono)

MP3
44.1kHz/48kHz, 32k/64k/96k/128k/192k/256k/320kbps

Power Consumption
2.5W（Max.）

Battery Operation Time
15 hours (continuous operation, phantom power off)

Dimensions (W x H x D)
2.76" x 6.1" x 1.38"
70 × 155 × 35 mm（Mic Closed）
3.54" x 6.1" x 1.38"
90 × 155 × 35 mm（Mic Opened）

Weight
7.51 oz. / 213g（Without Batteries）

Number of Channels
4 Channels（2 Stereo）

Playback Speed Control
（VSA）
50-150% without changing pitch
※Only with 44.1kHz/48kHz

Built-In Microphone
Cardioid Condenser microphones
Supporting both X-Y/A-B microphone settings

EXT MIC/LINE IN
Connector
XLR/TRS Combo Jack (1:GND,2:HOT,3:COLD)
Input Impedance
2.2kΩ(MIC)/10kΩ(LINE)

Nominal Input Level
-19dBV(MIC) / +4dBu (LINE)

Maximum Input Level
-3dBV (MIC) / +20dBu (LINE)



PHONES/LINE OUT
Line Connector
1/8(3.5mm) Stereo mini-phone jack, unbalanced
Output impendence
12Ω
Nominal output level
－14dBV（10kΩ loaded）
Maximum output level
＋2dBV（10kΩ loaded）
Headphone

Maximum output
20mW＋20mW（32Ω loaded）
Built-in Speaker Output
0.3W (mono)
Low Cut Filter

Cut Off Frequency
40Hz/80Hz/120Hz
USB

Connector
Mini B type

Format
USB2.0 HIGH SPEED Mass Storage Class

Power
Three AA batteries (alkaline batteries or NiMH batteries)
Provided by the USB bus power
AC100 ~ 240V ,50-60Hz (AC adapter optional PS-P515U)
Power Consumption
2.5W（Max.）

Included Accessories
2GB SD Card
Mini USB Cable

Audio Performance
Frequency Response
20Hz～20kHz +1dB/-3dB（Fs 44.1kHz、EXT IN→LINE OUT、JEITA）
20Hz～22kHz +1dB/-3dB（Fs 48kHz、EXT IN→LINE OUT、JEITA）
20Hz～40kHz +1dB/-3dB（Fs 96kHz、EXT IN→LINE OUT）
Total Harmonic Distortion
Less than 0.05%（Fs 44.1/48/96kHz、EXT IN→LINE OUT）
S/N Ratio
Greater than 92dB（Fs 44.1/48/96kHz、EXT IN→LINE OUT）

Computer Requirements
Windows
OS
Windows XP
Windows Vista
Windows 7
CPU/Clock
Pentium 300MHz Min.
Memory
128MB Min.
USB Port
USB2.0 recommended
Macintosh
OS
Mac OS X v10.2 or later
CPU/Clock
Power PC、iMac、G3、G4 、G5 266MHz Min.
Memory
64MB Min.
USB Port
USB2.0 recommended
