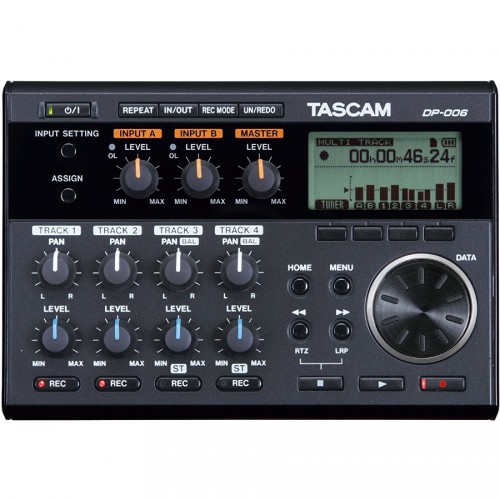

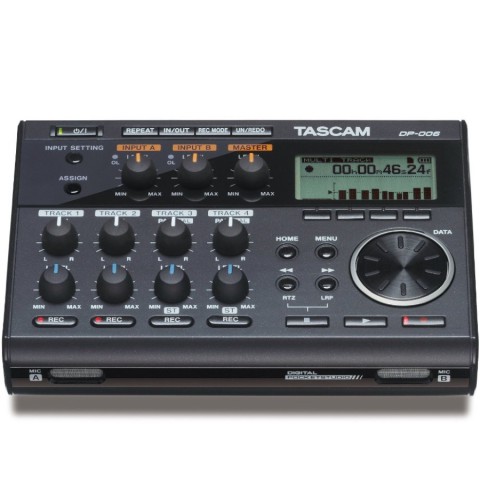

Tascam DP-006 PocketStudio Recorder

The DP-006 is a Battery Powered Compact Multi-Track Recorder from Tascam. Song ideas can happen anywhere and with the DP-006, you'll get a 'Music Sketch Pad' for songwriting that offers a Quick-Start. Anyone can use the DP-006 to jot down all of the key components to your songs. With this professional sounding multi-track recorder you'll be ready when and wherever creativity strikes.

The DP-006 has high-quality stereo condenser microphones for easy on-the-spot recording, built directly in to the front of the unit. These mics allow users to record vocals or acoustic guitar anytime without the need for extra equipment or set-up time.

Modeled after the top-selling DR series microphones, you can rest assured the DP-006 will be giving you top-quality sound.



Simple and Easy-to-Use Interface

The DP-006 has been optimally designed for on-the-spot recording. No unnecessary features were included that might complicate the recording to ensure easy functionality. Designed with analog functionality and dedicated control knobs, the POCKETSTUDIO is the simplest-to-use songwriting scratchpad available.



Ultra Lightweight Design

The DP-006's ultra light-weight design ensures portability, only weighing 360g. So you can carry it with you everywhere in your gig-bag. For elongated battery life the Tascam DP-006 model can connect directly to TASCAM's optional external battery pack via USB.

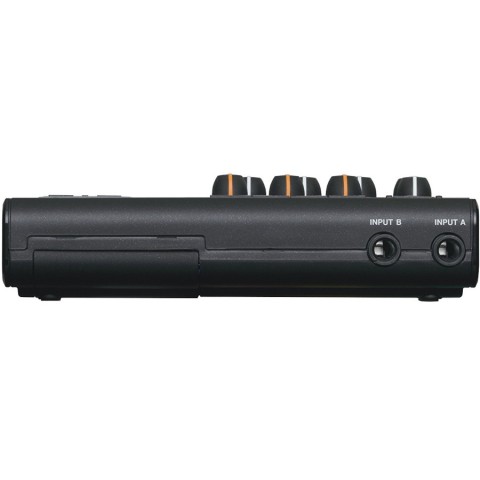

Two Analog Inputs for External Microphones and Electric/Acoustic Guitar

The DP-006 has two input terminals by phone-jack, these terminals provide to connect an external microphone, an electric-acoustic guitar and a line-level device like a synthesizer.

Record to SD/SDHC Card (up to 32GB), High-Speed Data Transfer via USB2.0

The DP-006 is capable of recording to widely available SD/SDHC card media with a 2GB card included. In addition, it can also connect to PCs via USB2.0 for high-speed data transferring. All song ideas can be transferred via USB or SD card readers to and from the units at any point in the recording process. Files can be used in correspondence with most DAWs.

Loaded with features that make the life of the travelling musician infinitely easier in an attractive an affordable package, the Tascam DP-006 is an ideal solution for a top quality, easy to use and portable studio quality recorder.





Features

• Up to six tracks recording (2mono tracks+ 2mono/stereo switchable tracks)

• CD quality recording (16bit/44.1kHz)

• Two tracks simultaneous recording/six tracks simultaneous playback

• Dedicated stereo master track available

• Record to SD/SDHC card (Up to 32GB)

• 2 Built-in omni-directional condenser microphones

• Microphone sensitivity can be selected from 3-positions (Low/Mid/High)

• Two TRS 1/4" mic/line inputs

• INPUT A - Direct high-impedance instrument connectivity (e.g. Electric Guitar/Bass)

• Independent LEVEL/PAN (BALANCE) knobs for each track

• 15mW/ch headphone output

• 128x64 dot-matrix LCD

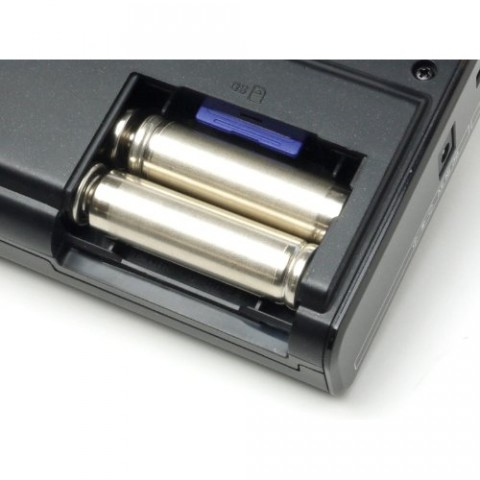

• Four AA batteries operation up to 9 hours (When recording, using the eneloop battery)

• Optional AC adapter ready (TASCAM PS-P520)

• Can connect to an external battery pack (TASCAM BP-6AA)

• Tripod screw hole

• Direct-locate function by jog-wheel

• Repeat playback between IN/OUT

• Track edit functions（CLONE TRACK, CLEAN OUT, SILENCE, CUT, OPEN)

• Bounce function allows recording of more than six tracks

• UNDO/REDO(UNDO HISTORY) function

• Chromatic tuner and metronome included

• High-speed data transfer by USB 2.0 connection

• Backup and restore songs

• File import/export by Wav format (mono/stereo)

• Export stereo master file as stereo wav format

• 2GB SD card included





Specifications

Recording Specs
Recording Media	SD/SDHC card (up to 32GB)
File System	TASCAM original (MTR partition) FAT32 (FAT partition)



Line Input
Connector	2 x 1/4" TS unbalanced
Input Impedances	Switchable: ≥ 10kΩ mic/line 1MΩ guitar
Nominal Input Level	-10 dBV
Maximum Input Level	+6 dBV
Headroom	16 dB



Built-In Microphone Specs
Type	2 x omni-directional condenser microphone



Line Output
Connector	1/8" (3.5 mm) stereo mini
Nominal Output Level	-16 dBV
Maximum Output Level	0 dBV



Headphone Output
Connector	1/8" (3.5 mm) stereo mini
Maximum Output Level	15 mW per side (THD+N less than 0.1%, 32Ω loaded)



Audio Performance
Frequency Response	20 Hz to 20 kHz +1/-3 dB
Distortion	< 0.05%
Signal-to-Noise Ratio	> 81 dB



USB Connectivity
USB Connector	1 x USB Mini-B 4-pin
Format	USB 2.0 high speed mass storage class
Operating System Requirements	Windows XP / Vista / 7 Mac OS X 10.2 or later



General Specs
Power Requirements	4 x AA batteries (alkaline or NiMH) TASCAM PS-P520 AC adapter (sold separately)
Battery Life (approx.)	8 hrs alkaline, 9 hrs NiMH (using line input/recording) 8.5 hrs alkaline, 9.5 NiMH (using headphone/playback)
Power Consumption	1W maximum
Operating Temperature Range	41 to 95°F (5 to 35°C)
Dimensions (W x H x D)	6.1 x 1.63 x 4.2" (155 x 41.5 x 107 mm)
Weight	12.7 oz (360 g)



Packaging Info
Package Weight	1.65 lb
Box Dimensions (LxWxH)	8.9 x 6.0 x 3.0"
