Mooer Purer Octave Pedal

MOOER has been impressing musicians around the globe since 2010 with its cutting-edge guitar pedals, and this is set to continue with the new MOOER Purer Octave pedal. MOOER has taken a minimalistic and sleek approach to the design of Purer Octave, whilst leveraging a cutting-edge repitch algorithm to go beyond the functionality of regular octave pedals.

Purer Octave provides guitarists with 15 different polyphonic octave effect combinations in addition to one detune effect. The DSP algorithm separates the high and low input frequencies to ensure every preset operates seamlessly without spectral artefacts or distortions. These two frequency bands can be isolated or combined dynamically through the independent "SUB" and "UPPER" dials, allowing guitarists to finely craft the perfect effect to suit their specific needs.

Despite the minimalistic interface, Purer Octave users can still save their own presets by using the pedal's three-way toggle switch. Guitarists can choose whether to use the pedal's dials in real-time to craft their sound and once they are satisfied with the effect, they can leverage the three-way switch to save their favourite effects. Bypassing the effect simply requires a foot press from the guitarist, the status of which is indicated via an LED light.

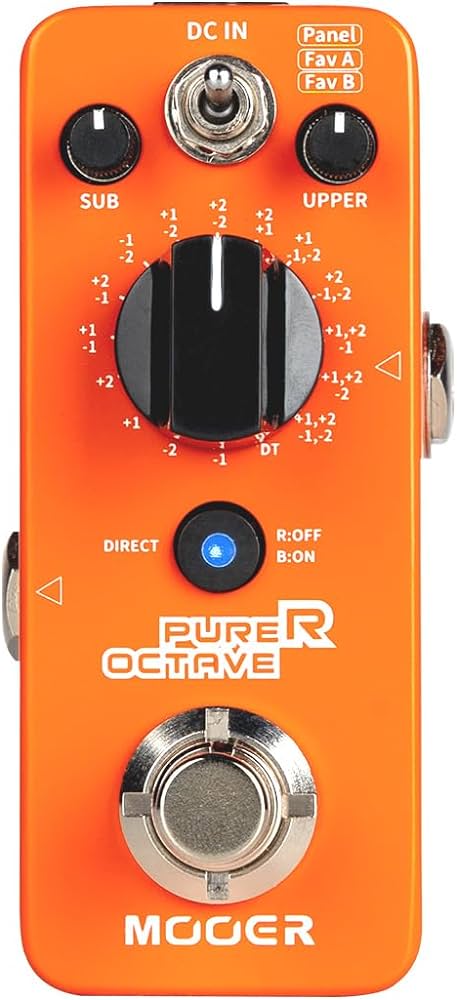

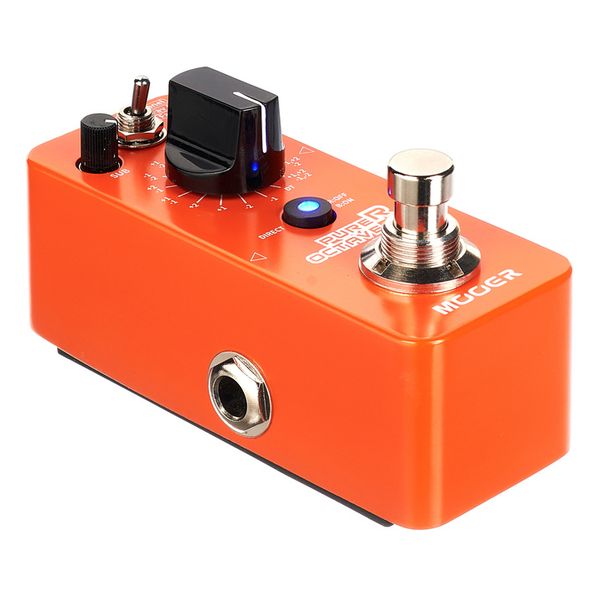

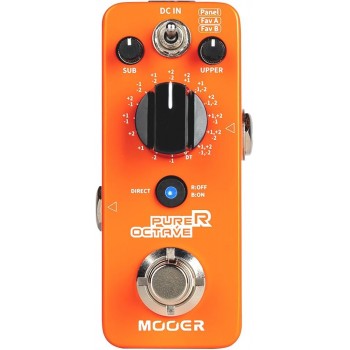

Purer Octave is presented within a compact pedal case with a glossy orange finish, complete with an intuitive and tidy user interface. The pedal provides a standardized quarter inch mono input and output, powered by a 9V DC power port. These features ensure that Purer Octave can be used on the move by any guitarist, offering a truly flexible and intuitive product for octave effect perfection.

Feature

• 15 different octave effect modes

• 1 detune effect mode

• Three-way toggle switch offering a real-time effect mode and 2 preset slots

• Independent volume dials for isolated sub and upper octave voice

• Bypass foot-switch

• Industry-standard quarter inch mono input and output

• Glossy orange finish

• Tidy and intuitive user interface

• LED light indicator of bypass status

• 9V DC power port

Specification

• INPUT: quarter inch mono audio jack (impedance value 470k Ohms)

• OUTPUT: quarter inch mono audio jack (impedance value 100 Ohms)

• Power supply: 9V DC (center negative)

• Current draw: 120mA

• Dimension: 93.5(D)× 42(W)× 52mm(H)

• Weight: 157g
